CYJ--centripetal needle roller and holder unit is independent rolling elements, the space between the two guiding surfaces of the holder is wide which can not only guide the needle roller but also can keep the correct position of the needle roller. This series is used in the situation when the axis and seat bore are treated as bearing race. High rotated precision with mini space can be assured only to process the axis and bearing seat bore into stated dimension precision and geometric accuracy.
Main Structure Style:
Bearing No.
Characteristics of Structure

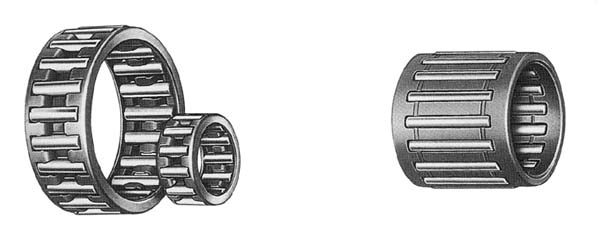

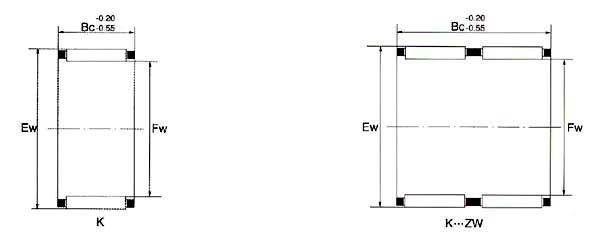

K/KS
Single Lines/Single Line Dissect Style

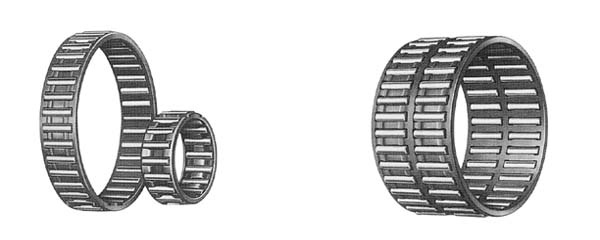

KK/KKS

Double Lines/Doubles Line Dissect Style

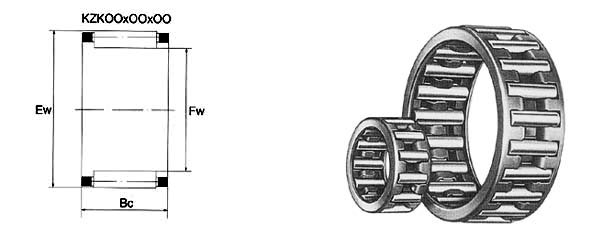

KZK
For Connecting Rod Crank Pin

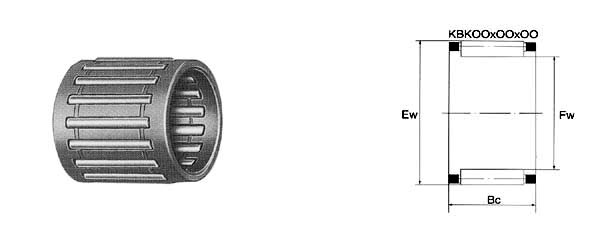

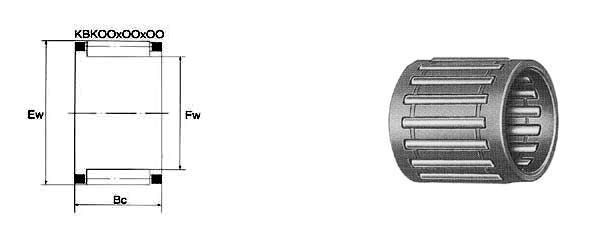

KBK
For Connecting Rod Piston Pin

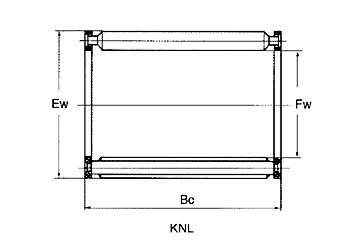

KNL
Long Cylindrical Roller and Holder Unit
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
5 K5X8X8 TN 29241/5 0.7 5 8 8 2300 1880 37000
K5X8X10 TN 39241/5 0.9 5 8 10 2800 2450 37000
6 K6X9X8 TN 29241/6 0.8 6 9 8 2560 2240 35000
K6X9X10 TN 39241/6 1 6 9 10 3300 3100 35000
K6X10X13 TN 49241/6 1.3 6 10 13 3500 2800 33000
7 K7X10X8 TN 29241/7 0.9 7 10 8 2750 2550 32000
K7X10X10 TN 39241/7 1.1 7 10 10 3350 3400 32000
8 K8X11X8 TN 29241/8 1.1 8 11 8 3000 2900 30000
K8X11X10 TN 39241/8 1.7 8 11 10 3830 3950 30000
K8X11X13 TN 49241/8 1.8 8 11 13 5000 5700 30000
K8X12X10 TN 29242/8 1.3 8 12 10 4900 4600 30000
9 K9X12X10 TN 39241/9 1.5 9 12 10 4200 4700 30000
K9X12X13 TN 49241/9 1.9 9 12 13 5500 6700 30000
10 K10X13X10 TN 39241/10 1.6 10 13 10 4500 5250 27000
K10X13X13 TN 49241/10 2.1 10 13 13 6000 7600 27000
K10X13X16 TN   2.2 10 13 16 6300 7800 27000
K10X14X10 TN 29242/10 2.9 10 14 10 7000 7900 27000
K10X14X13 TN 39242/10 4.3 10 14 13 8000 9100 26000
K10X16X12 TN 19244/10 3.7 10 16 12 7000 9300 27000
12 K12X15X9 TN   2.7 12 15 9 4120 5210 25000
K12X15X10 TN 39241/12 1.9 12 15 10 4320 5730 25000
K12X15X13 TN 49241/12 2.4 12 15 13 6000 8100 25000
K12X15X20 TN   3.8 12 15 20 8200 12000 25000
K12X16X8 TN 19242/12 2.9 12 16 8 4200 4700 25000
K12X16X10 TN 29242/12 3.4 12 16 10 6000 6900 25000
K12X16X13 TN 39241/12 3.8 12 16 13 7900 9200 25000
K12X17X13 TN 59242/12 4.4 12 17 13 9300 10000 24000
K12X18X12 TN 19244/12 5 12 18 12 9800 8000 24000
14 K14X17X10   4 14 17 10 5100 6800 23000
K14X17X17   6.8 14 17 17 9300 14000 23000
K14X18X10 29242/14 4.8 14 18 10 6800 8300 23000
K14X18X13 39242/14 6.3 14 18 13 8100 9800 23000
K14X18X14   6.8 14 18 14 9200 12000 23000
K14X18X15 49242/14 7.3 14 18 15 10000 13000 23000
K14X18X17 59242/14 8.1 14 18 17 10500 13900 23000
K14X20X12 19243/14 8.6 14 20 12 9900 10500 22000
15 K15X18X14   5.3 15 18 14 7500 11000 23000
K15X18X17   6.4 15 18 17 9600 15900 23000
K15X19X10 29242/15 5.1 15 19 10 7200 9000 22000
　 K20X24X17
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
15 K15X19X13 39241/15 7 15 19 13 8300 9800 22000
K15X19X17 59241/15 8.8 15 19 17 10300 15000 22000
K15X19X24 ZW 79241/15 10.5 15 19 24 12800 20100 22000
K15X20X13 29242/15 8.9 15 20 13 9700 11000 22000
K15X21X12 19243/15 10 15 21 12 10000 13000 22000
K15X21X15 39242/15 13 15 21 15 13800 16000 22000
K15X21X21   18.2 15 21 21 18000 24000 22000
16 K16X20X10 29241/16 5.7 16 20 10 7600 9700 22000
K16X20X13 39241/16 7.1 16 20 13 8700 11300 22000
K16X20X17 59241/16 9.2 16 20 17 11200 16300 22000
K16X21X10 19242/16 3.7 16 21 10 9000 12000 22000
K16X22X12 19243/16 10.4 16 22 12 11000 12000 21000
K16X22X13   11.9 16 22 13 12000 13400 21000
K16X22X16   13.7 16 22 16 14300 17000 21000
K16X22X20 49243/16 16.7 16 22 20 18000 22300 21000
K16X23X14 19244/16 20 16 23 14 19000 21000 19000
K16X24X20 19245/16 24.9 16 24 20 21100 23000 20000
17 K17X21X10 29241/17 5.6 17 21 10 7900 10100 21000
K17X21X13 39241/17 7.5 17 21 13 10000 14100 21000
K17X21X17 59241/17 9.5 17 21 17 12000 17400 21000
K17X23X14 29243/17 11.5 17 23 14 11000 15000 21000
18 K18X22X10 29241/18 6.1 18 22 10 8200 9900 20000
K18X22X13 39241/18 7.7 18 22 13 9000 12100 20000
K18X22X17 59241/18 10.8 18 22 17 11900 17600 20000
K18X24X12 19243/18 11.6 18 24 12 11200 12900 20000
K18X24X13   12.6 18 24 13 12900 14900 20000
K18X24X13.5   13 18 24 13.5 12900 14900 20000
K18X24X20 49243/18 19 18 24 20 20000 26500 20000
K18X25X14   14.9 18 25 14 16500 18800 20000
K18X25X22   24.9 18 25 22 22900 28400 20000
K18X26X14   19 18 26 14 18000 20000 18000
K18X28X16 19244/18 24 18 28 16 19000 18400 19000
19 K19X23X13   8.2 19 23 13 9300 13000 20000
K19X23X17   11.1 19 23 17 12000 18600 20000
20 K20X24X10 29241/20 6.5 20 24 10 8700 12100 19000
K20X24X12   8 20 24 12 9600 13800 19000
K20X24X13 39241/20 8.9 20 24 13 9600 13800 19000
29241/20 11.2 20 24 17 12400 20000 19000
K20X26X12 19243/20 13.2 20 26 12 13100 15700 19000
　
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
20 K20X26X16 29243/20 17.5 20 26 16 18000 25000 18500
K20X26X17 39243/20 18.2 20 26 17 18700 25500 19000
K20X26X20 49243/20 22 20 26 20 20600 28500 19000
K20X28X20 19245/20 26.8 20 28 20 23400 28000 18000
K20X28X25 29245/20 3.2 20 28 25 30000 28500 18000
K20X30X30 39245/20 56 20 30 30 35000 41000 18000
21 K21X25X13   9 21 25 13 9600 14500 19000
K21X25X17   12 21 25 17 12800 21000 19000
22 K22X26X10 29241/22 7.1 22 26 10 8700 12900 18000
K22X26X13 39241/22 9.4 22 26 13 10000 15400 18000
K22X26X17 59241/22 12.1 22 26 17 13100 22100 18000
K22X27X13 29242/22 10.8 22 27 13 14000 23000 18000
K22X28X17 39243/22 19.7 22 28 17 19000 26500 18000
K22X28X23 59243/22 26 22 28 23 20000 27000 19000
K22X29X16 19244/22 22.2 22 29 16 19500 25000 17000
K22X30X15 TN   14.4 22 30 15 19600 22900 17000
K22X30X20 19245/22 28 22 30 20 21000 23500 18900
K22X32X24   43.4 22 32 24 33500 39500 16000
23 K23X35X16 TN   30 23 35 16 24000 23400 15000
24 K24X28X10   8.1 24 28 10 9400 14300 17000
K24X28X13   10.1 24 28 13 10500 17000 17000
K24X28X17 9243/24 13.2 24 28 17 14000 24500 17000
K24X29X13   13.5 24 29 13 13100 19100 16000
K24X30X17   21.5 24 30 17 19000 27000 16000
K24X30X31   39.1 24 30 31 27000 43000 16000
25 K25X29X10 29241/25 8.3 25 29 10 9700 14900 16000
K25X29X13 39241/25 10.4 25 29 13 10800 17900 16000
K25X29X17 59241/25 13.7 25 29 17 14500 25500 16000
K25X30X13 29242/25 12.9 25 30 13 14100 21300 16000
K25X30X20 59242/25 20.5 25 30 20 21100 28000 16000
K25X30X25   21 25 30 25 21700 40400 15000
K25X30X26   21.6 25 30 26 20100 26500 15000
K25X31X17 39243/25 21.8 25 31 17 19000 28000 16000
K25X31X21   26.2 25 31 21 24100 37500 16000
K25X32X16 19244/25 24.5 25 32 16 20500 27500 15000
K25X33X20 19245/25 32 25 33 20 28000 37500 15000
K25X33X24 29245/25 38.7 25 33 24 33900 46500 15000
K25X34X18   32 25 34 18 48000 67000 15000
K25X35X30 39245/25 65.5 25 35 30 46500 61500 14000
K25X30X26 ZW   27 25 30 26 21000 35000 14000
　 ,
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
26 K26X30X10   9 26 30 10 9500 15500 16000
K26X30X13   11.4 26 30 13 11100 18700 16000
K26X30X17   15 26 30 17 14700 27000 16000
K26X30X22   9.9 26 30 22 12400 18400 15000
K26X31X13   12.3 26 31 13 15200 28000 16000
27 K27X32X17   29 27 32 17 16000 34000 17000
28 K28X32X16.5   16 28 32 16.5 15000 32400 14000
K28X32X17 9242/28 18.2 28 32 17 15000 32400 14000
K28X33X13 29241/28 15.2 28 33 13 14800 23600 14000
K28X33X17 49241/28 19.5 28 33 17 19100 33000 14000
K28X33X27 TN 79241/28 19 28 33 27 22800 40500 14000
K28X34X17 39242/28 24.2 28 34 17 21300 35000 14000
K28X35X16 19243/28 26 28 35 16 21000 29000 14000
K28X35X18   31 28 35 18 23500 33500 14000
K28X35X20 29243/28 35 28 35 20 24000 34000 14000
K28X35X27   47 28 35 27 34500 54500 14000
K28X36X16   40 28 36 16 34000 47000 11000
K28X40X18   50 28 40 18 33000 36500 12000
K28X40X25   71 28 40 25 45000 54500 12000
30 K30X34X13   14.6 30 34 13 11800 21200 13000
K30X35X13 29241/30 16.3 30 35 13 15100 25000 13000
K30X35X17 49241/30 21.3 30 35 17 19100 33500 13000
K30X35X27 79241/30 33.3 30 35 27 30000 58500 13000
K30X37X16 19243/30 26.4 30 37 16 22500 33000 13000
K30X38X25 29244/30 43 30 38 25 16000 39000 13000
K30X40X18   44 30 40 18 31500 39500 12000
K30X40X30 49243/30 78 30 40 30 48500 68500 13000
K30X35X26   32 30 35 26 23500 43500 12000
32 K32X37X13 29241/32 18.3 32 37 13 15000 25000 12000
K32X37X17 49241/32 22.4 32 37 17 19400 35000 12000
K32X37X27 79241/32 36.7 32 37 27 29500 59500 12000
K32X37X28 TN   22.3 32 37 28 23100 43000 12000
K32X38X16   25 32 38 16 21000 34000 12000
K32X38X20 49242/32 31 32 38 20 26000 44500 12000
K32X38X26 TN   25.2 32 38 26 27000 46500 12000
K32X39X16 19243/32 36.7 32 39 16 23500 35000 12000
K32X39X18   37.2 32 39 18 26000 40500 12000
K32X40X20 19244/32 48 32 40 20 37000 40500 12000
　
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
32 K32X40X36   73 32 40 36 53500 91500 12000
K32X46X32   119 32 46 32 65500 82500 11000
K32X40X42 TN   77.1 32 40 42 49500 83500 12000
35 K35X40X13 29241/35 18.8 35 40 13 15800 27500 11000
K35X40X17 49241/35 25.3 35 40 17 20300 38000 11000
K35X40X25 29244/35 31 35 40 25 29000 59500 11000
K35X40X27 TN 19241/35 23.4 35 40 27 24500 48000 11000
K35X40X27 79241/35 28 35 40 27 27800 62100 11000
K35X40X30 39244/35 43 35 40 30 25000 49500 11000
K35X42X16 19243/35 34 35 42 16 23900 37000 11000
K35X42X18   39.2 35 42 18 27000 42500 11000
K35X42X30 49243/35 62.4 35 42 30 38500 67500 11000
K35X43X18   38 35 43 18 28000 41500 11000
K35X45X20   55.5 35 45 20 36500 49500 10000
K35X45X30 29245/35 80 35 45 30 52500 78500 10000
K35X45X49   120 35 45 49 81500 13400 10000
K35X40X30 ZW   48 35 40 30 31500 65500 11000
K35X42X20 ZW 29243/35 41 35 42 20 29500 48500 11000
36 K36X41X30   52 36 41 30 23000 43000 11000
K36X42X16   50 36 42 16 24000 42000 11000
37 K37X42X17   25.8 37 42 17 21900 42500 10000
K37X42X27   40.7 37 42 27 31500 67500 10000
K37X45X26   60.5 37 45 26 43500 73500 10000
38 K38X43X17 49241/38 26.9 38 43 17 20000 38000 10000
K38X43X27 79241/38 43.2 38 43 27 31000 67500 10000
K38X46X20 19244/38 46 38 46 20 35000 56500 10000
K38X46X32   72.7 38 46 32 54500 98500 10000
39 K39X44X24   38 39 44 24 28000 58500 10000
K39X44X26 ZW   29.5 39 44 26 27000 55500 10000
40 K40X44X13   20 40 44 13 13500 28000 10000
K40X45X13 29241/40 21.5 40 45 13 17100 32000 10000
K40X45X17 49241/40 27.4 40 45 17 20900 41000 10000
K40X45X21   36.5 40 45 21 24400 49500 10000
K40X45X27 79241/40 46 40 45 27 32500 72500 10000
K40X46X17 39242/40 30 40 46 17 24500 44500 9000
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
40 K40X47X18   45.2 40 47 18 29000 49500 9000
K40X47X20 29243/40 42 40 47 20 32000 56500 9000
K40X48X20 19244/40 57.7 40 48 20 35500 58500 9000
K40X45X30 ZW   48 40 45 30 26000 53500 9000
42 K42X47X13 29241/42 22.5 42 47 13 17300 33000 9000
K42X47X17 49241/42 31.1 42 47 17 21100 42500 9000
K42X47X25 TN   25.4 42 47 25 27000 57500 9000
K42X47X27 79241/42 46.6 42 47 27 33000 74500 9000
K42X48X35 7242/42 60 42 48 35 35000 76000 9000
K42X50X18   53 42 50 18 31000 49500 9000
K42X50X20 19244/42 54 42 50 20 34500 56500 9000
K42X47X30 ZW   54 42 47 30 31000 75500 9000
43 K43X48X17   29.3 43 48 17 21000 42500 9000
K43X48X27   45.7 43 48 27 33000 74500 9000
K43X50X18 9249/43 48.5 43 50 18 30500 53500 9000
45 K45X49X19   27 45 49 19 17500 40000 8000
K45X50X17 49241/45 25.5 45 50 17 22000 45000 8000
K45X50X27 19241/45 50 45 50 27 34000 79500 8000
K45X50X32 TN   45 45 50 32 38000 90500 8000
K45X52X18   51 45 52 18 31000 56500 8000
K45X52X21 TN   32.9 45 52 21 39500 57500 8000
K45X53X20 19244/45 62.2 45 53 20 38500 66500 8000
K45X53X21   65 45 53 21 38000 66500 8000
K45X53X22   68.4 45 53 22 42000 66500 8000
K45X53X28   78 45 53 28 51500 97500 8000
K45X59X18 TN   60.5 45 59 18 43500 53500 7000
K45X59X32   145.5 45 59 32 72500 101500 7000
K45X59X36   195 45 59 36 75500 108500 7000
K45X51X36 ZW   85 45 51 36 44500 98500 7000
47 K47X52X17   32 47 52 17 22800 48500 8000
K47X52X27   50.7 47 52 27 34500 82500 8000
K47X53X25   53 47 53 25 38000 81500 8000
K47X55X28   62.4 47 55 28 52500 99500 7500
48 K48X54X19 39242/48 44 48 54 19 30000 60500 7500
K48X54X25 59242/48 55 48 54 25 31000 91000 7500
50 K50X55X13.5   31 50 55 13.5 17500 36000 7500
K50X55X17 49241/50 35 50 55 17 21400 46500 7500

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic , Cor Static Oil
mm g mm N rpm
50 K50X55X20 59241/50 39.4 50 55 20 26000 59500 7500
K50X55X30 9243/50 59.4 50 55 30 38500 96500 7500
K50X57X18   53.4 50 57 18 33000 62500 7000
K50X58X20 19244/50 64.9 50 58 20 35000 61500 7000
K50X58X25 29244/50 81 50 58 25 43500 80500 7000
52 K52X57X12   24 52 57 12 17500 36000 7000
55 K55X60X20   43.4 55 60 20 28000 65500 6500
K55X60X27   60.5 55 60 27 37500 96500 6500
K55X60X30   68.6 55 60 30 40500 10300 6500
K55X61X20 49241/55 56 55 61 20 41000 11000 6500
K55X62X18   5.4 55 62 18 35000 69500 6500
K55X63X15   53 55 63 15 24500 40500 6500
K55X63X20 19243/55 73.3 55 63 20 39500 73500 6500
K55X63X25 29243/55 88 55 63 25 49500 99500 6500
K55X63X32   117 55 63 32 61500 129500 6500
K55X60X40 ZW   96.5 55 60 40 48000 13200 6500
56 K56X61X20   45 56 61 20 27000 64500 6500
58 K58X63X17   42 58 63 17 21500 63500 6000
K58X64X19   53 58 64 19 24500 77500 6000
K58X65X18   52 58 65 18 34500 69500 6000
K58X65X38 ZW   106 58 65 38 48500 106500 6000
60 K60X65X20 49241/60 50.5 60 65 20 29000 71500 6000
K60X65X30 69241/60 71.2 60 65 30 42000 115500 6000
K60X68X20 19243/60 79 60 68 20 43000 84500 5500
K60X68X23   94 60 68 23 49000 100500 5500
K60X68X25 29243/60 97 60 68 25 52500 110500 5500
K60X68X27   98 60 68 27 59000 120500 6000
K60X75X42   240 60 75 42 11300 19200 5500
K60X66X33 ZW   104 60 66 33 45500 111500 5500
K60X66X40 ZW   116 60 66 40 57500 150500 5500
K60X68X30 ZW   136 60 68 30 44000 87500 5500
K60X68X34 ZW   140 60 68 34 47500 95500 5500
62 K62X70X40 ZW   147.5 62 70 40 65500 145500 5500
63 K63X70X21   75 63 70 21 45000 100500 5500
64 K64X70X16   53 64 70 16 27500 59500 5500
65 K65X70X20 49241/65 49 65 70 20 30000 76500 5500
K65X70X30   83 65 70 30 43500 123500 5500
K65X73X23   100 65 73 23 45500 93500 5000
K65X73X30 39243/65 126 65 73 30 56500 122500 5000
　 ,
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating Limiting Speed
Current Original Code Fw Ew Bc Cr Dynamic Cor Static Oil
mm g mm N rpm
68 K68X74X20 49241/68 65 68 74 20 35000 83500 5000
K68X74X30 69241/68 97 68 74 30 46000 117500 5000
K68X74X35 ZW 79241/68 116 68 74 35 48000 124500 5000
K68X75X20   120 68 75 20 53500 127500 4500
70 K70X76X20 49241/70 70 70 76 20 35500 85500 4500
K70X76X30 69241/70 100 70 76 30 51500 138500 4500
K70X78X25 29243/70 115 70 78 25 51500 111500 4500
K70X78X30 39243/70 136 70 78 30 59500 134500 4500
K70X80X30 29244/70 150 70 80 30 72500 147500 4500
K70X78X46 ZW   230 70 78 46 77500 18800 4500
72 K72X80X20 19243/72 94 72 80 20 41000 84500 4500
73 K73X79X20   69 73 79 20 36500 99500 4500
75 K75X81X20 49241/75 72 75 81 20 37000 93500 4500
K75X81X30 69241/75 106 75 81 30 51500 142000 4500
K75X83X23   113 75 83 23 49500 108000 4000
K75X83X30 39243/75 147 75 83 30 61500 142000 4000
K75X83X35 ZW 49243/75 165 75 83 35 62500 146500 4000
K75X83X40 ZW 59243/75 190 75 83 40 72500 176500 4000
80 K80X86X20 49241/80 76 80 86 20 38000 97500 4000
K80X86X30 69241/80 114 80 86 30 55500 158500 4000
K80X88X30 39243/80 141 80 88 30 71500 178500 4000
K80X88X40 ZW 59243/80 204 80 88 40 75500 191500 4000
K80X88X46 ZW 69243/80 235 80 88 46 87500 23000 4000
85 K85X92X20 29241/85 96 85 92 20 44000 107500 3500
90 K90X97X20 29241/90 103 90 97 20 44500 112500 3000
K90X98X27   150 90 98 27 60500 149500 3000
K90X98X30 39242/90 172 90 98 30 67500 171500 3000
95 K95X102X20 29241/95 110 95 102 20 45500 122500 2900
K95X102X30 39242/95 177 95 102 30 68500 179500 2900
K95X103X40 ZW 59242/95 250 95 103 40 82500 227500 2900
100 K100X107X21   120 100 107 21 47500 126500 2700
K100X108X27   176 100 108 27 56500 142500 2700
K100X108X30 39242/100 190 100 108 30 70500 187500 2700
105 K105X112X21   123 105 112 21 47000 126500 2500
K105X113X30 39242/105 198 105 113 30 71500 196500 2500
110 K110X117X24   146 110 117 24 55500 157500 2300
K110X118X30 39244/110 217 110 118 30 77500 218500 2300

Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions
Current Original Code Fw Ew Bc
mm g mm
19.051 KNL19.051X28.588X36.75 64903 70 19.051 28.588 36.75
19.051 KNL19.051X28.588X43.25 64904 80 19.051 28.588 43.25
20 KNL20X30.2X18 64704 40 20 30.2 18
20.612 KNL20.612X33.325X35 864904 96 20.612 33.325 35
20.638 KNL20.638X33.338X36.75 64705 92 20.638 33.338 36.75
25 KNL25X38X24.7 64805 82 25 38 24.7
25.4 KNL25.4X41.2X60.4 64905 265 25.4 41.2 60.4
27.71 KNL27.7X42.825X44.1 64906 183 27.71 42.825 44.1
28.575 KNL28.575X41.275X34.925 64806 122 28.575 41.275 34.925
28.578 KNL28.578X41.275X40 94626 155 28.578 41.275 40
29.975 KNL29.975X42X44.1 64706 160 29.975 42 44.1
29.975 KNL29.975X42X31 9148/30 81 29.975 42 31
31.75 KNL31.75X44.45X31.75 864807 115.8 31.75 44.45 31.75
31.9 KNL31.9X41.46X32 31.9X41.46X32 95 31.9 41.46 32
32 KNL32X50X45 30643/32 272 32 50 45
32 KNL32X52X49 64907 329 32 52 49
37.96 KNL37.96X53.9X36 37.96X53.9X36 208.3 37.96 53.9 36
40 KNL40X60X30 10643/40 248 40 60 30
52.412 KNL52.412X71.425X42.3 864911 441 52.412 71.425 42.3
65 KNL65X89X58.9 864913 943 65 89 58.9
74 KNL74X106X57.9 864915 1563 74 106 57.9
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
8 KZK8X12X8 19242/8 1.9 8 12 8 4700 4580
10 KZK10X14X10 29242/10 3.3 10 14 10 5000 5160
12 KZK12X15X13 49241/12 3.6 12 15 13 5300 7400
KZK12X16X10 29242/12 3.5 12 16 10 6100 6900
KZK12X16X11   3.7 12 16 11 6200 7100
KZK12X17X10 19243/12 5 12 17 10 7020 7020
KZK12X18X10 19242/12 7.8 12 18 10 7400 7200
14 KZK14X18X10 29241/14 4 14 18 10 7100 8500
KZK14X19X10 19242/14 5.5 14 19 10 7300 7600
KZK14X19X12   7.5 14 19 12 7460 7950
KZK14.4X20.4X10   6.5 14.4 20.4 10 8100 7800
15 KZK15X19X9   5 15 19 9 6800 7100
KZK15X19X10 29241/15 6 15 19 10 7200 8400
KZK15X20X10 19242/15 7.5 15 20 10 7800 9100
KZK15X21X10   8.5 15 21 10 8400 10500
KZK15X21X11   9.5 15 21 11 8500 10700
KZK15.2X22.2X12   11.5 15.2 22.2 12 8600 11100
16 KZK16X20X10 29241/16 5.8 16 20 10 8200 9200
KZK16X20X24 79241/16 6.3 16 20 24 8700 9400
KZK16X21X10 19242/16 5.8 16 21 10 8800 9800
KZK16X22X12 19243/16 9.5 16 22 12 11000 11900
KZK16X22X14   11 16 22 14 13200 13930
17 KZK17X21X10 29241/17 6.7 17 21 10 7600 9000
KZK17X23X11   9.5 17 23 11 8100 11300
18 KZK18X22X10 29241/18 6.9 18 22 10 7600 9800
KZK18X22X24   7.2 18 22 24 10100 17200
KZK18X24X11.6 19243/18 10 18 24 11.6 11600 13100
KZK18X24X12 19243/18 10 18 24 12 11600 13100
KZK18X24X13.3   12.4 18 24 13.3 9000 10700
KZK18X24X13.5   12.4 18 24 13.5 9000 10700
KZK18X24X15 29243/18 14 18 24 15 13200 15500
19 KZK19X25X16 19244/19K 13.9 19 25 16 12100 15500
KZK19X28X14   20 19 28 14 12100 15000
20 KZK20X25X16   12 20 25 16 9900 12300
KZK20X26X12 19243/20 9.6 20 26 12 10100 12500
KZK20X26X14   12 20 26 14 12600 16700
KZK20X26X17 9246/20 17 20 26 17 12700 17600
　
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
22 KZK22X28X13   15 22 28 13 11900 16500
KZK22X28X14   16 22 28 14 12600 16800
KZK22X28X15 29242/22 16.7 22 28 15 13500 18500
KZK22X28X16 29243/22K 18 22 28 16 14400 20100
KZK22X29X15   15.2 22 29 15 17800 21800
KZK22X29X16 19244/22 19 22 29 16 17800 21800
KZK22X30X16 SZ-432 25.7 22 30 16 18700 22300
23 KZK23X29X13   12 23 29 13 10000 11300
KZK23X30X14   19.4 23 30 14 9350 10100
KZK23X30X16   22 23 30 16 9780 11800
KZK23.1X28.1X14 29242/23.1 12.9 23.1 28.1 14 10600 15800
24 KZK24X30X15   17 24 30 15 11200 13700
KZK24X30X16   18 24 30 16 11200 13700
25 KZK25X30X28 69245/25 24 25 30 28 13300 15200
KZK25X31X12 19243/25K 16 25 31 12 8700 8800
KZK25X31X17 39243/25 23 25 31 17 9200 9750
KZK25X31X20 49243/25 26 25 31 20 9700 10600
KZK25X32X16 19244/25 22.7 25 32 16 18200 23100
KZK25.1X30.1X14   14.1 25.1 30.1 14 13700 19000
26 KZK26X34X16 9248/26 25 26 34 16 11700 17500
28 KZK28X33X14   15.7 28 33 14 13200 21900
KZK28X34X14   20 28 34 14 16500 20700
KZK28X35X15   25 28 35 15 18000 22000
KZK28X35X16 19243/28 27 28 35 16 18900 23000
KZK28X36X16   29.1 28 36 16 19500 27000
KZK28X38X13.6   40 28 38 13.6 17300 20300
30 KZK30X36X16   28.5 30 36 16 18900 22800
KZK30X37X16 19243/30 29 30 37 16 21500 30500
KZK30X38X16   34.4 30 38 16 22700 32600
KZK30X38X18   38.8 30 38 18 26200 39600
32 KZK32X40X22 19244/32K 50 32 40 22 27800 39300
KZK32X42X20   54 32 42 20 29000 41000
35 KZK35X42X20 29243/35 10 35 42 20 26000 40200
38 KZK38X46X20 19244/38 50 38 46 20 31100 43000
40 KZK40X48X17   50 40 48 17 29000 39000
KZK40X48X20 19244/40 54 40 48 20 32500 51000

　
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
8 KBK8X11X10 39241/8 1.85 8 11 10 3500 4000
KBK8X12X10 29242/8 2 8 12 10 3700 4100
9 KBK9X12X11.5   2.4 9 12 11.5 4200 4800
KBK9X12X13 49241/9 2.75 9 12 13 4600 5800
KBK9X12X14   3.5 9 12 14 4700 5900
KBK9X13X12 39242/9 4.1 9 13 12 5300 5700
KBK9X13X12.5   4.9 9 13 12.5 5300 5700
KBK9X13X13 39242/9 5.1 9 13 13 5350 5600
10 KBK10X13X8 29241/10 2 10 13 8 4000 5000
KBK10X13X10 39241/10 2.4 10 13 10 4200 5200
KBK10X13X14.5 59241/10 5.1 10 13 14.5 5400 6600
KBK10X13X16   5.7 10 13 16 6800 7700
KBK10X14X10 29242/10 3.4 10 14 10 4400 4600
KBK10X14X11   4 10 14 11 5200 5700
KBK10X14X12   4.5 10 14 12 5400 6000
KBK10X14X12.5   4.85 10 14 12.5 5600 6200
KBK10X14X13 39242/10 5.4 10 14 13 5600 6200
11 KBK11X15X17   5 11 15 17 5200 7000
12 KBK12X15X13 49241/12 4.6 12 15 13 5500 7300
KBK12X15X14.3   5.4 12 15 14.3 5800 7700
KBK12X15X15 59241/12 5.6 12 15 15 5900 7800
KBK12X15X16.5   6.2 12 15 16.5 6800 9900
KBK12X15X17 69241/12 6.3 12 15 17 7000 10000
KBK12X15X17.5   6.5 12 15 17.5 7000 10000
KBK12X16X13 39242/12 6.7 12 16 13 6300 7600
KBK12X16X15 19242/12KY 7.9 12 16 15 7500 9000
KBK12X16X15.5   8.3 12 16 15.5 7600 10000
KBK12X16X16 59241/12 8.5 12 16 16 7800 9300
KBK12X16X17 59242/12 9.2 12 16 17 7900 9400
KBK12X17X14   8 12 17 14 8000 9500
KBK12X17X14.3   8.4 12 17 14.3 8000 9500
KBK12X17X14.8   8.8 12 17 14.8 8300 9800
13 KBK13X17X14.5   7.1 13 17 14.5 8300 10200
KBK13X17X17.5   8.6 13 17 17.5 9500 1200
14 KBK14X18X10 29241/14 4.6 14 18 10 6260 7400
KBK14X18X12   6.6 14 18 12 6380 7570
KBK14X18X13 39241/14 7.6 14 18 13 7300 8700
KBK14X18X14   6.33 14 18 14 7400 8800
KBK14X18X14.5   8 14 18 14.5 7400 8800
　
Shaft Diameter Bearing Designation Mass Approx Boundary Dimensions Basic Load Rating
Current Original Code Fw Ew Bc Cr Dynamic Cor Static
mm g mm N
14 KBK14X18X15 49241/14 8.3 14 18 15 7600 8990
KBK14X18X16.5   9.6 14 18 16.5 8800 9700
KBK14X18X17 59241/14 10.1 14 18 17 8900 9800
KBK14X18X20 69241/14 12 14 18 20 9000 10100
KBK14X18X21   13 14 18 21 10500 12400
KBK14X18X22   14 14 18 22 11100 13100
KBK14X19X17 49241/14K 10.3 14 19 17 11100 13100
15 KBK15X19X10 29241/15Y 5 15 19 10 6500 8600
KBK15X19X18   11 15 19 18 9900 11300
KBK15X19X19   12 15 19 19 10100 12800
KBK15X19X20 69241/15 12.9 15 19 20 11300 15500
KBK15X20X24 SZ-433 18.6 15 20 24 14100 20000
16 KBK16X20X19   12 16 20 19 11700 16800
KBK16X20X20 69241/16Y 13.4 16 20 20 12900 17600
KBK16X20X21   14 16 20 21 12900 17600
KBK16X20X22   15 16 20 22 13000 18700
KBK16X21X19 59242/16 16 16 21 19 13000 18700
17.5 KBK17.5X22X16   9.3 17.5 22 16 11000 16300
18 KBK18X22X22   16.9 18 22 22 11500 17700
KBK18X22X23.5   18 18 22 23.5 11900 19000
KBK18X22X24   18.4 18 22 24 12000 20000
KBK18X22X25   19.1 18 22 25 12700 20100
KBK18X23X21   18 18 23 21 9900 10100
KBK18X23X23 69242/18 20 18 23 23 10500 12000
KBK18X24X20 49243/18 20 18 24 20 20000 25000
20 KBK20X24X30   22.1 20 24 30 14900 25500
KBK20X25X22   19.5 20 25 22 15200 22300
KBK20X25X25   23 20 25 25 17100 24000

‐Print／ ‐Back／
