Needle Roller Bearing (Solid Ferrule) >> Needle Roller Bearing (Solid Ferrule)

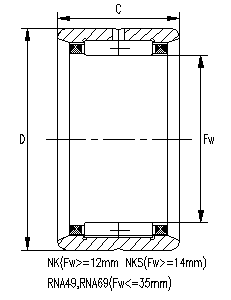

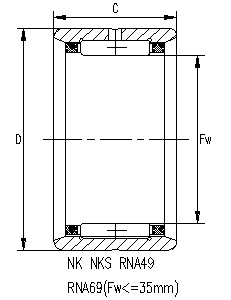

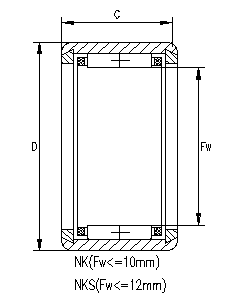

CYJ—needle rollers bearing can bear greater radial load and there are ones with inner ring and without inner ring. G2 needle rollers are installed, the tolerance of the average diameter is within 2um. Rigidity holders are adopted to correctly lead the needle rollers to be parallel with the axes. Main Structure Style: Bearing No. Characteristics of Structure NK NKS RNA49 RNA48 Double Edge Match of Outer Ring, Single Line, Without Inner Ring NKI NKIS NA49 NA48 Double Edge Match of Outer Ring, Single Line, With Inner Ring RNA69 Double Edge Match of Outer Ring, Double Lines, Without Inner Ring NA69 Double Edge Match of Outer Ring, Double Lines, With Inner Ring. RNA49..RS RNA49..2RS Single or Double Surface Airproofing Double Lines NA69.. RS NA69..2RS Single or Double Surface Airproofing Double Lines. RNAO Outer Ring without capped edge, single line or double lines, without inner ring NAO Outer Ring without capped edge, single line or double lines, with inner ring. RNAV Double capped edge of outer ring, single line, without inner ring NAV Double capped edge of outer ring, single line, with inner ring Series Explanation NK Non- inner ring needle bearing, light series NKS Non- inner ring needle bearing, heavyseries RNA 49 Non- inner ring needle bearing, size series 49 RNA 69 Non- inner ring needle bearing, size series 69,Pair Row (Odd Row to RNA 6906) RNA 48 Non- inner ring needle bearing, size series 48 NKI with Inner ring needle bearing, light series NKIS with Inner ring needle bearing, heavy series NA 49 inner ring needle bearing, size series 48 NA 69 Non- inner ring needle bearing, size series 48,Pair Row (Odd Row to NA 6906) NA 48 with Inner ring needle bearing, size series48 RNA 49..RS with out Inner ring needle bearing,Directly Seal ,Size series 49 RNA 49..2RS with out Inner ring needle bearing,One-sided seal ,Size series 49 NA 49..RS with Inner ring needle bearing,Directly Seal ,Size series 49 NA 49..2RS with Inner ring needle bearing,Two-sided seal ,Size series 49 Shaft Diameter Bearing Designation Mass Approx Borndary Dimensions Basic Load Rating Limiting Speed Fw D C Cr Dynamic Cor Static Oil mm Series Substituted g mm N rpm NK NKS RNA49 RNA69 5 NK5/10TN -- -- -- -- 2.9 5 10 10 2100 1400 36780 8 NK8/12TN -- -- -- -- 8.3 8 15 12 3050 3650 29112 10 NK10/12 -- -- -- 4624097K 10 10 17 12 4750 5350 23500 -- -- -- -- 5624097 16.6 10 17 15 4860 7100 23500 12 NK12/12 -- -- -- 644079 11.8 12 19 12 6050 6400 21640 -- -- -- -- 5624098 15.4 12 19 15 6400 7100 21640 NK12/16 -- -- -- -- 16.8 12 19 16 8200 9800 21640 14 NK15/16 -- -- -- 4624900K 20.8 14 22 16 8260 9600 18322 -- NKS14 -- -- -- 27 14 25 16 10400 10800 17652 -- -- RNA4900 -- 4624900 24.4 14 22 13 8060 9000 18322 -- -- -- RNA6900 6634900 29.1 14 22 22 8281 11612 18322 15 NK15/12 -- -- -- 644800K 18.5 15 23 12 8600 10070 21004 -- -- RNA152815 -- -- 31.7 15 28 15 13600 17200 10031 -- -- -- -- 7948/15 16.1 15 22 12 8200 9800 8412 -- -- -- -- 644302 18.2 15 25 12 10600 13500 17144 16 NK16/16 -- -- -- -- 20.8 16 24 16 9030 11900 15522 NK16/20 -- -- -- 624701 23.9 16 24 20 10400 16800 15522 -- -- RNA4901 -- 4624901 16.6 16 24 13 6400 8900 15522 -- -- -- RNA6901 6634901 28.7 16 24 22 14000 18600 15522 -- NKS16 -- -- -- 30 16 28 16 14900 15000 20000 17 NK17/16 -- -- -- 644903K 21.5 17 25 16 9000 13500 14163 18 NK18/20 -- -- -- -- 30.5 18 26 20 10500 13800 13628 20 NK20/16 -- -- -- 644802 25.7 20 28 16 11500 13400 12716 NK20/20 -- -- -- 624802 29.3 20 28 20 12400 21800 12716 NK202616 -- -- -- -- 20.8 20 26 16 9600 10800 9125 NK202620 -- -- -- -- 17.2 20 26 20 10500 11900 9125 -- NKS20 -- -- -- 46.8 20 32 20 20000 22000 18000 NK203312SX -- -- -- -- 29.1 20 33 12 13000 17500 11124 -- -- -- -- 6624101 24.3 20 28 25 11000 12900 12716 -- -- RNA4092 -- 4624902 20.5 20 28 13 10800 12800 12716 -- -- -- RNA6902 6634902 35.4 20 28 23 13000 25000 12716 22 NK22/16 -- -- -- NK223016 29.2 22 30 16 13500 18000 11527 -- -- -- -- NK223516 34.6 22 35 16 18600 20800 12711 -- NKS22 -- -- -- 60.2 22 35 20 21500 25000 17000 -- -- RNA4903 -- 4644903 20.7 22 30 13 12000 16800 16300 -- -- -- RNA4903 6634903 39.8 22 30 23 14000 19900 16300 -- -- -- -- 624703 53 22 35 25 24500 28000 14187 -- -- -- -- 634704L 42.5 22 30 30 17700 27000 16300 -- -- -- -- 644704 27.4 22 28 16 10500 15050 15172 -- -- -- -- NK223516 49.4 22 35 16 18600 20800 16522 23 -- -- -- -- 634704KA 37.5 23 30 30 18600 29000 15711 25 NK25/16 -- -- -- 624904 30 25 33 16 12900 20400 15000 NK25/20 -- -- -- 644804 38.4 25 33 20 16800 28500 15000 -- -- RNA4904 -- 4644904 50.8 25 37 17 11912 16594 14060 -- -- -- RNA6904 6634904 97.7 25 37 30 26000 43000 14060 -- NKS25 -- -- -- 65 25 38 20 25800 31000 16300 -- -- -- -- 62704 100.1 25 35 25 14900 22400 14060 -- -- -- -- 644804K 63 25 33 30 18800 30500 14060 26 NK26/16 -- -- -- -- 30 26 34 16 15000 23000 16300 NK26/20 -- -- -- -- 40 26 34 20 17000 30000 16300 28 -- -- RNA283833 -- -- 99.8 28 38 33 33000 57000 16300 -- -- -- -- F3833 99.8 28 38 33 33000 57000 12000 -- NKS28 -- -- -- 80 28 42 20 25900 33500 12000 30 NK30/20 -- -- -- 644805 57.9 30 40 20 20600 32000 14600 NK30/30 -- -- -- -- 95 30 40 30 31500 50000 12066 -- -- RNA4905 -- 4624905 57 30 42 17 13452 20475 14500 -- -- -- RNA6905 6634905 106.5 30 42 30 26300 31750 12066 -- -- -- -- 624905K 68 30 42 20 15400 24500 12066 32 NK32/20 -- -- -- 624705 75.4 32 42 20 17500 33500 12066 -- -- RNA49/28 -- 46449/32K 80 32 45 17 17400 30050 12000 -- NKS32 -- -- -- 100 32 47 22 31000 40000 12100 -- -- -- RNA69/28 -- 125 32 45 30 39500 61300 13100 -- -- -- -- 644906 42 32 38 11 10750 30500 12000 -- -- -- -- 644706 193 32 50 35 40500 63000 12000 35 NK35/20 -- -- -- 644806 70 35 45 20 13851 26900 12000 -- -- RNA4906 -- 4624906 62.8 35 47 17 17000 30500 12000 -- -- -- RNA6906 6634906 116 35 47 30 35000 67000 12000 -- -- -- -- 644907 161 35 51 32 43500 71000 11680 37 -- -- -- -- 624706 154 37 52 22 28500 45500 9027 40 NK40/20 -- -- -- -- 78.9 40 50 20 19600 43000 8881 NK40/30 -- -- -- -- 120 40 50 30 22200 513500 8881 -- -- -- RNA69/32 66349/32 147 40 52 36 25500 68500 8881 42 NK42/20 -- -- -- -- 83 42 52 20 23900 45000 10000 NK42/30 -- -- -- -- 125 42 52 30 27000 49000 10000 -- -- RNA4907 -- 4624907 99.3 42 55 20 19800 41500 8710 -- -- -- RNA6907 6634907 160 42 55 36 26000 60500 8710 -- -- -- -- 644708 148 42 65 22 31500 51000 8710 43 NK43/20 -- -- -- -- 84 43 53 20 25700 49000 10000 NK43/30 -- -- -- -- 126 43 53 30 39000 75000 10000 Shaft Diameter Bearing Designation Mass Approx Borndary Dimensions Basic Load Rating Limiting Speed Fw D C Cr Dynamic Cor Static Oil mm Series Substituted g mm N rpm NK NKS RNA48 RNA49 RNA69 45 NK45/20 -- -- -- 644808 81.5 45 55 20 19800 46500 7650 -- -- -- -- 624708 75.3 45 55 22 20500 49600 7650 -- -- -- -- 46449/38 80 45 58 20 21600 50500 7650 48 -- -- RNA4908 -- 4644908 132 48 62 22 31036 63873 8120 -- -- -- RNA6908 6634908 238 48 62 40 64000 112000 8120 50 NK50/25 -- -- -- -- 167 50 62 25 28000 67000 8140 NK50/35 -- -- -- -- 236 50 62 35 32000 70100 8140 -- -- -- -- 624708K 328 50 65 34 40000 62000 8140 52 -- -- RNA4909 -- 4624909 163 52 68 22 37000 69500 7625 -- -- -- RNA6909 6634909 308 52 68 40 61500 123500 7625 55 NK55/25 -- -- -- -- 167 55 68 25 30600 60800 7625 -- -- -- -- 624709 210 55 68 25 36000 68000 7625 58 -- -- RNA4910 -- 4644910 161 58 72 22 41000 72000 7500 -- -- -- RNA6910 6634910 296 58 72 40 68000 135000 7500 60 NK60/25 -- -- -- -- 154 60 72 25 39000 86000 7000 63 -- -- RNA4911 -- 4644911 241 63 80 25 50600 96580 6340 -- -- -- RNA6911 6634911 430 63 80 45 82560 172000 6340 68 -- -- RNA4912 -- 4644912 257 68 85 25 52800 91050 6100 -- -- -- RNA6912 6634912 436 68 85 45 88500 186000 6100 72 -- -- RNA4913 -- 4644913 300 72 90 25 57500 110500 6100 -- -- -- RNA6913 6634913 571 72 90 45 87600 194500 6100 80 -- -- RNA4914 -- 4644914 400 80 100 30 79000 154000 5130 -- -- -- RNA6914 6634914 815 80 100 54 121000 263000 5130 85 -- -- RNA4915 -- 4644915 472 85 105 30 82000 158000 5130 -- -- -- RNA6915 6634915 923 85 105 54 128000 272000 5130 90 -- -- RNA4916 -- 4644916 496 90 110 30 81000 170500 4927 -- -- -- RNA6916 6634916 978 90 110 54 130500 280600 4927 96 -- -- -- -- SG-421 496 96 115 29 73000 137000 4600 100 -- -- RNA4917 -- 4644917 608 100 120 35 98000 207000 4600 -- -- -- RNA6917 6634917 1112 100 120 63 161000 337000 4600 105 -- -- RNA4918 -- 4644918 713 105 125 35 98500 239000 4000 -- -- -- RNA6918 6634918 1250 105 125 63 174000 380000 4000 110 -- -- RNA4919 -- 4644919 685 110 130 35 112000 245000 3870 -- -- -- RNA6919 6634919 1325 110 130 63 196000 400000 3870 115 -- -- RNA4920 -- 4624920 1006 115 140 40 120000 264000 3710 125 -- -- RNA4922 -- 6634922 1200 125 150 40 124000 270000 3350 130 -- -- RNA4824 -- 4644824 685 130 150 30 91600 234000 3000 135 -- -- RNA4924 -- 4644924 1760 135 165 45 174000 386000 2920 155 -- -- RNA4828 -- 4644824 988 155 175 35 119000 321000 2570 160 RNA4928 -- 4644928 2350 160 190 50 200000 460000 2900
